Condition: Item is subject to minor cosmetic imperfections. Packaging may be in poor shape. The item displayed in the images may not be the actual item you receive.

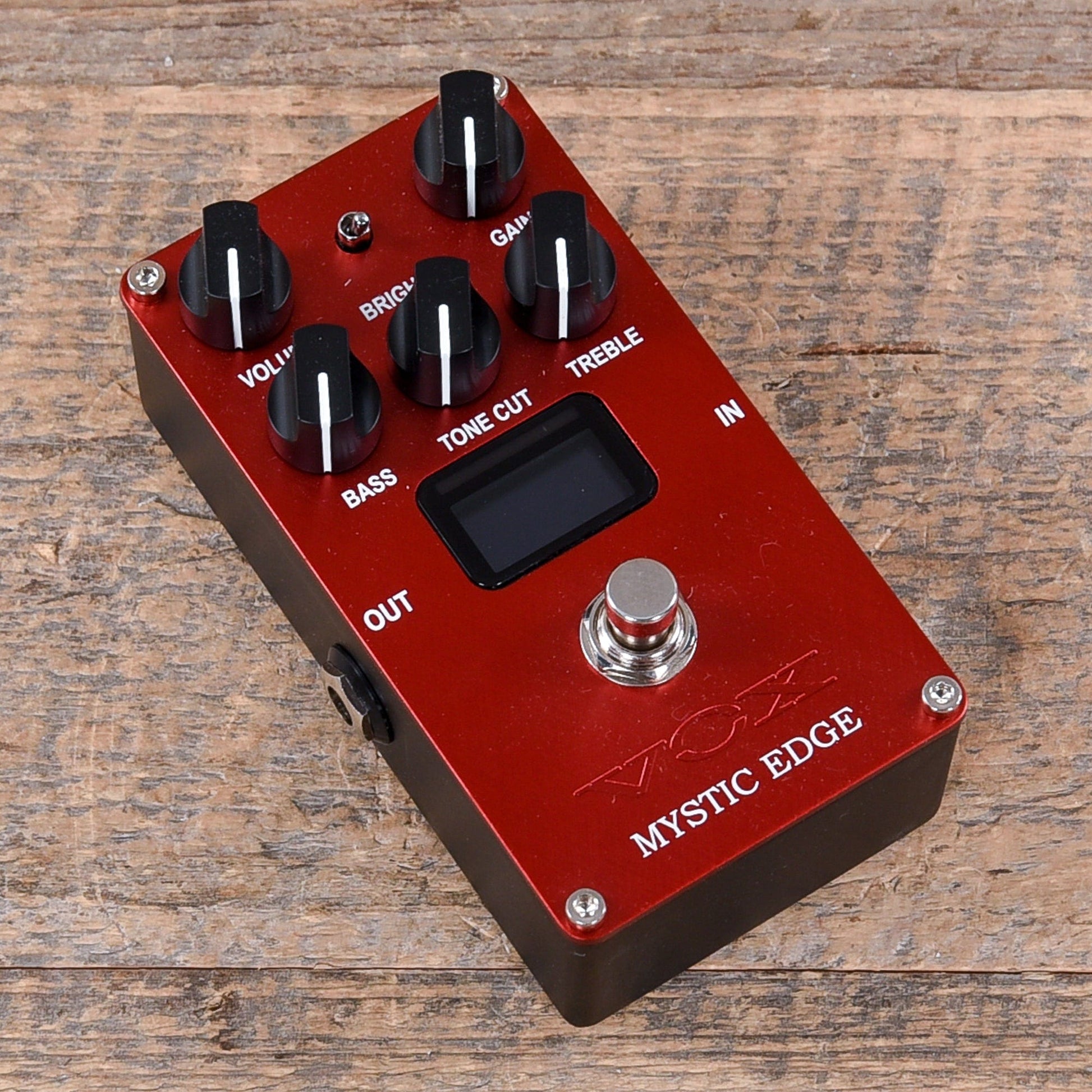

Iconic amp sounds for your pedalboard. The Mystic Edge valve distortion pedal offers the chime and midrange of the VOX AC30 in a compact pedal format, powered by Nutube for warm and responsive amp-like tones.

Inspired by the VOX AC30’s chime and midrange, the Mystic Edge goes beyond the amp-in-a-box category to offer a truly flexible valve distortion pedal. The all-analog signal path and Nutube allow for genuine overdrive and distortion tones with the feel of a real tube amp, while internally boosted voltage gives greater headroom and dynamics. Plus, the OLED display shows an oscilloscope while the pedal is active or bypassed, allowing you to understand exactly how your signal is affected.

Three output modes allow you to use this as a standard pedal, a line-level preamp, and a direct amp-sim using the built-in analog cabinet simulator. Use STANDARD mode with your normal guitar rig to totally transform your amp, or use PREAMP or CAB-SIM mode while recording directly into your audio interface. In each mode, the all-analog design and active EQ allow you to perfectly dial in the sound you need in any situation.

You can chain two VALVENERGY pedals together with a standard 1/8” stereo cable through the LINK jack of each pedal. This allows you to turn one pedal on while bypassing the other, using the system as if you were switching between channels of a guitar amp. By using a split y-configuration 1/8” stereo cable, you can link three pedals.

These pedals are equipped with a high-contrast OLED display showing an oscilloscope, a visual indication of how the waveform is affected by the knob settings. This display allows shows which mode you are currently using.


• Valve distortion pedal with all-analog signal path
• Iconic sound of the VOX AC30
• Powered by Nutube
• Three output modes for use as a pedal or preamp
• Selectable analog cabinet simulator
• OLED display with oscilloscope
• Active EQ to shape your signal

INPUTS/OUTPUTS: INPUT jack, OUTPUT jack, DC9V jack, LINK jack
CONTROLS: GAIN knob, VOLUME knob, TONE CUT knob, TREBLE knob, BASS, BRIGHT switch, MODE switch
POWER SUPPLY: 1 x 9V alkaline battery or 9V center negative AC adaptor (not included)
DIMENSIONS (W X D X H): 72 mm x 120 mm x 55 mm/2.83″ x 4.72″ x 2.17″ (Including the switch and foot rubber)
WEIGHT: 350 g/12.35 oz. (Excluding the battery)
